I was reading a blog by Chad Carlson about Measuring Deployment Success with GitHub Actions and I noticed a stylish deployment counter featured at the bottom of their website, highlighting their platform’s successful deployments. While a PaaS provider like platform.sh will have many more deployments than my personal website, I felt inspired to create a similar counter and integrate it into my CI/CD pipeline.

For some context, my website is a static website built using hugo and hosted on Azure as a Static Web App. The entire codebase resides in a GitHub repository, and I’ve set up a streamlined CI/CD pipeline to trigger deployment to Azure upon a specific event, successful commits.

For my approach, I’ll use Github Actions to create a workflow that increments a counter that will keep track of all of my successful deployments. This counter will be called deployment_counter.txt, will contain an integer and will be located inside folder called counter.

What is a GitHub Actions Workflow?

A workflow is a configurable automated process that will run one or more jobs. Workflows are defined by a YAML file checked in to your repository and will run when triggered by an event in your repository, or they can be triggered manually, or at a defined schedule.

Workflows are defined in the .github/workflows directory in a repository, and a repository can have multiple workflows, each of which can perform a different set of tasks.

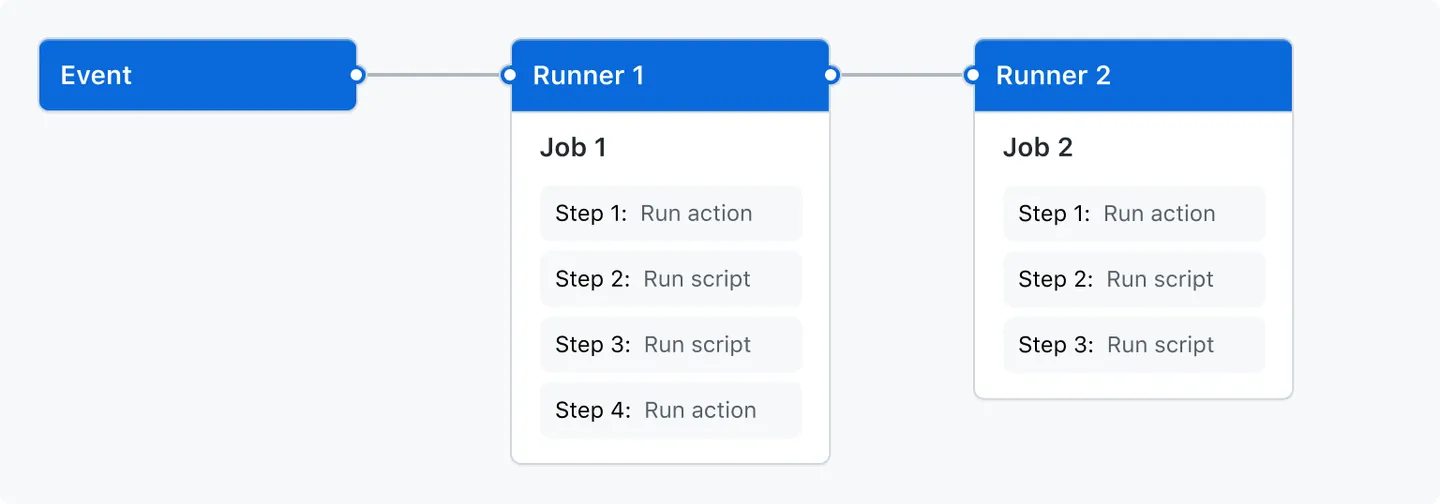

A workflow must contain the following basic components:

1. One or more events that will trigger the workflow.
2. One or more jobs, each of which will execute on a runner machine and run a series of one or more steps.
3. Each step can either run a script that you define or run an action, which is a reusable extension that can simplify your workflow.

Understanding the workflow

First, let’s take a look at the finished workflow:

name: Update Deployment Counter

on:
  workflow_run:
    workflows: [Azure Static Web Apps CI/CD]
    branches: [main]
    types:
      - completed

jobs:
  update_counter:
    runs-on: ubuntu-latest
    if: ${{ github.event.workflow_run.conclusion == 'success' }}
    steps:
      - name: Checkout Repository
        uses: actions/checkout@v2

      - name: Increment Counter
        id: increment_counter
        run: ./scripts/counter.sh

      - name: Update resources
        uses: test-room-7/action-update-file@v1
        with:
            file-path: counter/deployment_counter.txt
            commit-msg: Update counter
            github-token: ${{ secrets.ACTIONSCOUNTER_TOKEN }}

Let’s analyze each line.

name: Update Deployment Counter

on:

on:
  workflow_run:
    workflows: [Azure Static Web Apps CI/CD]
    branches: [main]

For example, this workflow will only run when the workflow named Azure Static Web Apps CI/CD runs on a branch whose name starts with main.

The workflow Azure Static Web Apps CI/CD monitors the repository for changes. As commits are pushed to the main branch, the application is built using another workflow.

types:
  - completed

jobs:

update_counter:

runs-on: ubuntu-latest

if: ${{ github.event.workflow_run.conclusion == 'success' }}

- name: Checkout Repository
  uses: actions/checkout@v2

- name: Increment Counter
  id: increment_counter
  run: ./scripts/counter.sh

- name: Update resources
  uses: test-room-7/action-update-file@v1
  with:
      file-path: counter/deployment_counter.txt
      commit-msg: Update counter
      github-token: ${{ secrets.ACTIONSCOUNTER_TOKEN }}

file-path: Specifies the path where the changes were made.

commit-msg: Provides a commit message.

github-token: Defines the name of the GitHub repository secret.

ACTIONSCOUNTER_TOKEN Gives the workflow permissions to make changes to the repository. This secret is linked to a token that lists the allowed actions the workflow can perform.

Avoiding an infinite loop

You may have realized that when the Azure Static Web Apps CI/CD workflow is triggered due to a successful change in the repository, it, in turn, fires off the Update Deployment Counter workflow. The latter is responsible for updating the text file that logs successful deployments. However, this update acts as an event in itself, triggering the Azure Static Web Apps CI/CD workflow yet again, thus creating an infinite loop.

Thankfully, github actions gives us many tools to use in our workflows.

Let’s take a look to a snippet of the Azure Static Web Apps CI/CD workflow:

name: Azure Static Web Apps CI/CD

on:
  push:
    paths-ignore: counter/deployment_counter.txt
    branches:
      - main
  pull_request:
    paths-ignore: counter/deployment_counter.txt
    types: [opened, synchronize, reopened, closed]
    branches:
      - main

Here I used the paths-ignore filter to specify a path that will be ignored by the workflow. Meaning that any changes made to deployment_counter.txt will not be considered an event and therefore the workflow will not be triggered.

Using markdown we can read the file stored in counter/deployment_counter.txt:

This site has 164 successful deployments! This number is updated automatically with every successful deployment.

This practical implementation underscores the potency of controlled workflows, code management, continuous integration and continuous delivery.

You can also see the counter implemented on my home page
